AVTrac® 482 停产

用于视音频信号连接的薄型地面安装式布线轨道系统

主要特性

带地毯内嵌凹槽
带橡胶条凹槽
薄型布线轨道系统
经济有效，无需凿地挖墙
符合 ADA 规范、全长 8（' 2.4 m）的布线轨道和侧板

型号	产品说明	产品编号
AVTrac 480C	Carpet Inlay, No AC	42-121-00	停产
AVTrac 480C UNIV CO	Carpet Inlay, w/AC Univ, Conduit Only	42-121-00J	停产
AVTrac 480C AC	Carpet Inlay, w/AC US, Prewired Conduit	42-121-24A	停产
AVTrac 480C AC	Carpet Inlay, 8' (2.4 m), w/AC - UK	42-121-24B	停产
AVTrac 480C AC	Carpet Inlay, 8' (2.4 m), w/AC - Israel	42-121-24C	停产
AVTrac 480C AC	Carpet Inlay, w/AC EU, Isolated Cable	42-121-24D	停产
AVTrac 480C AC	Carpet Inlay, w/AC FR, Isolated Cable	42-121-24E	停产
AVTrac 480C AC	Carpet Inlay, w/AC AUS, Conduit Only	42-121-24F	停产
AVTrac 480C AC	Carpet Inlay, 8' (2.4 m), w/AC - India	42-121-24G	停产
AVTrac 480C AC	Carpet Inlay, 8' (2.4 m), w/AC - Swiss	42-121-24H	停产
AVTrac 480C UNIV ISO	Carpet Inlay, w/AC Univ, Isolated Cable	42-121-24J	停产
AVTrac 480R	Rubber Strip, No AC	42-122-00	停产
AVTrac 480R UNIV CO	Rubber Strip, w/AC Univ, Conduit Only	42-122-00J	停产
AVTrac 480R AC	Rubber Strip, w/AC US, Prewired Conduit	42-122-24A	停产
AVTrac 480R AC	Rubber Strip, 8' (2.4 m), w/AC - UK	42-122-24B	停产
AVTrac 480R AC	Rubber Strip, 8' (2.4 m), w/AC - Israel	42-122-24C	停产
AVTrac 480R AC	Rubber Strip, w/AC EU, Isolated Cable	42-122-24D	停产
AVTrac 480R AC	Rubber Strip, w/AC FR, Isolated Cable	42-122-24E	停产
AVTrac 480R AC	Rubber Strip, w/AC AUS, Conduit Only	42-122-24F	停产
AVTrac 480R AC	Rubber Strip, 8' (2.4 m), w/AC - India	42-122-24G	停产
AVTrac 480R AC	Rubber Strip, 8' (2.4 m), w/AC - Swiss	42-122-24H	停产
AVTrac 480R UNIV ISO	Rubber Strip, w/AC Univ, Isolated Cable	42-122-24J	停产
AVTrac 482C	地毯内嵌，无交流电源	42-155-00	停产
AVTrac 482C	地毯内嵌，带美式交流电源，预布线管道	42-155-24A	停产
AVTrac 482R	橡胶条内嵌，无交流电源	42-156-00	停产
AVTrac 482R	橡胶条，带美式交流电源，预布线管道	42-156-24A	停产
AVTrac 480C	Carpet Inlay, 8' (2.4 m), US	60-888-24	停产
AVTrac 480R	Rubber Strip, 8' (2.4 m), US	60-903-24	停产

该产品已停产。

Extron AVTrac® 是一款地面安装式的薄型布线轨道系统，并采用模块化的 AAP（结构化安装适配板）接口盒。由两条 4'（1.2 m）长的轨道组合成的 8'（2.4 m）布线轨道，设计用于视音频设备不能摆放在墙边以及电源、数据和视音频连接采用传统定位方式的其它区域。AVTrac® 易于使用且经济有效，可以代替需要凿地挖墙的穿墙式设备、地板插座和架空式地板。AVTrac® 特别适用于教室、培训中心和其它可重新配置的空间、公司会议室以及传统安装并追求结构优化的环境。

特性

带地毯内嵌凹槽
带橡胶条凹槽
薄型布线轨道系统
经济有效，无需凿地挖墙
符合 ADA 规范、全长 8（' 2.4 m）的布线轨道和侧板
模块化接口盒，带有 2 个双格和 2 个三格的 AAP 开口
易于拆装的顶部面板
适用于美国、欧洲和其它世界主要市场的交流电源模块
提供兼容多种交流电源插头类型的通用型交流电源插座*

注: 通用型交流电源模块包括一个交流电源插座，并提供仅限管道和绝缘电缆预布线两种型号，可适应不同地区的市场需求。

*欲了解所有交流电源插座的完整兼容性信息，请参见《通用交流电源插座兼容性指南》，在线提供 www.extron.com/UACguide

技术参数

AVTrac® 482C, AVTrac 482R

General

Power

125 VAC, 50-60 Hz, 20 A (max.)

Mounting options

Track system (track and ramps)

Mountable onto base flooring, beneath finished carpeting

Connectivity box

Mountable through the metal track, onto base flooring

Optional AAP plates/devices

Mountable in the two double-space and two triple-space Architectural Adapter Plate (AAP) openings in the connectivity box

Enclosure type

Track base and top: metal
Connectivity box: plastic cover, metal base
Ramps: plastic

Enclosure dimensions: see diagrams below

Track system

End ramps

0.67" (1.7 cm) H x 9.36" (23.8 cm) radius, approximately 4.5° slope

Side ramps

0.67" (1.7 cm) H x 7.50" (19.0 cm) W on either side of track x [two 48.0" (121.9 cm) sections, total 96.0" (243.8 cm)] L, approximately 4.5° slope

Track base and top

1.03" H x 3.70" W x (two 48.0" sections, total: 96.0") L
(2.6 cm H x 9.4 cm W x [two 121.9 cm sections, total: 243.8 cm] L)

Connectivity box

3.55" H x 4.27" W x 12.0" L
(9.0 cm H x 10.8 cm W x 30.5 cm L)

Product weight

Parts in package 1 of 3

14.9 lbs (6.7 kg)

Parts in package 2 of 3

8.9 lbs (4.0 kg)

Parts in package 3 of 3

8.9 lbs (4.0 kg)

Shipping weight

Parts in package 1 of 3

20 lbs (10 kg)

Parts in package 2 of 3

11 lbs (5 kg)

Parts in package 3 of 3

11 lbs (5 kg)

Vibration

ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety

c-UL, UL

Accessibility

Title III, Regulation 28 CFR Part 36: ADA Standards for Accessible Design; Section 4.8: Ramps

Warranty

3 years parts and labor

NOTE	Specifications are subject to change without notice.

(7.6-100809-D1)

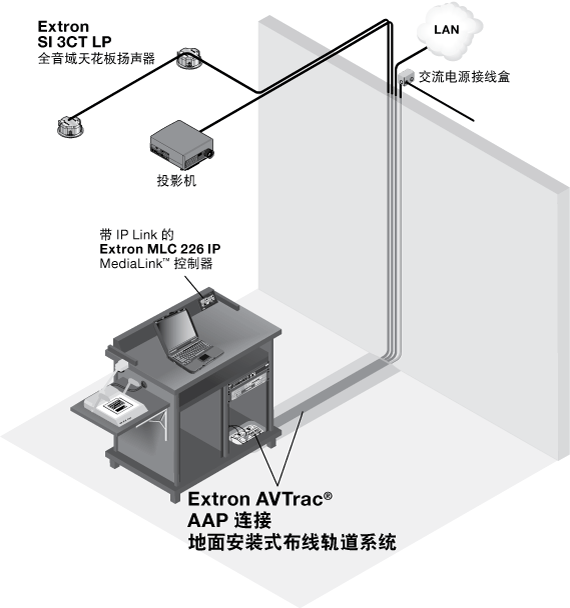

示意图

面板图
