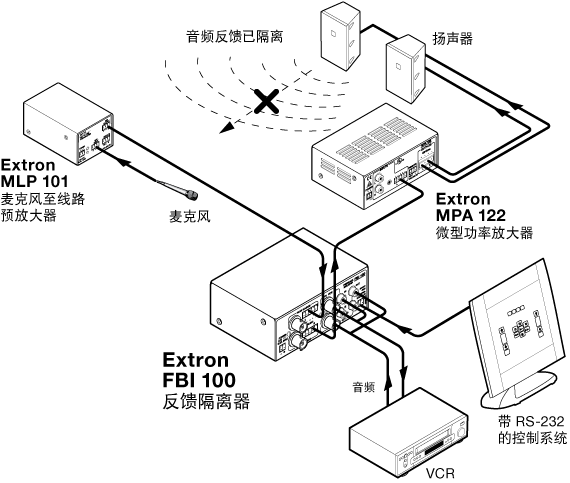

| FBI 100 Feedback Isolator |
|
| Video |
|---|
| Gain | Unity |
| Bandwidth | 10 MHz (-3 dB) |
|
| Video input |
|---|
| Number/signal type | 2 composite video |
| Connectors | 2 female BNC |
| Nominal level | 1 Vp-p for composite video (including sync) |
| Minimum/maximum levels | Analog: 0.3 V to 1.5 Vp-p with no offset |
| Impedance | 75 ohms |
| Input coupling | DC |
|
| Video output |
|---|
| Number/signal type | 2 composite video |
| Connectors | 2 female BNC |
| Nominal level | 1 Vp-p for composite video (including sync) |
| Minimum/maximum levels | Analog: 0.3 V to 1.5 Vp-p with no offset, follows input |
| Impedance | 75 ohms |
|
| Sync |
|---|
| Standards | NTSC 3.58, NTSC 4.43, PAL, SECAM |
|
| Audio |
|---|
| Gain | |
| Overall (from "From Source" to "To Destination") |
| | Unbalanced output: -6 dB; balanced output: 0 dB |
| From "From Source" to "To VCR In" |
| | -12 dB |
| From "From VCR Out" to "To Destination" |
| | Unbalanced output: +6 dB; balanced output: +12 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.05 dB |
| THD + Noise | 0.03% @ 1 kHz at nominal level |
| S/N | >90 dB at maximum output (unweighted) |
| Stereo channel separation | >80 dB @ 1 kHz, >60 dB @ 20 kHz |
| CMRR | >75 dB @ 20 Hz to 20 kHz |
|
| Audio input |
|---|
| Number/signal type | |
| "From Source" | 1 stereo balanced/unbalanced |
| "From VCR Out" | 1 stereo, unbalanced |
| Connectors | |
| "From Source" | (1) 3.5 mm captive screw connector, 5 pole |
| "From VCR Out" | 1 pair RCA |
| Impedance | >12k ohms unbalanced, 24k ohms balanced, DC coupled |
| Nominal level | |
| "From Source" | +4 dBu (1.23 Vrms) |
| "From VCR Out" | -10 dBV (316 mVrms) |
| Maximum level | |
| "From Source" | +27 dBu, (balanced) at 1% THD+N |
| "From VCR Out" | +11 dBV, (unbalanced) at 1% THD+N |
| Input coupling | DC |
|
| Audio output |
|---|
| Number/signal type | |
| "To VCR In" | 1 stereo, unbalanced |
| "To Destination" | 1 stereo, balanced/unbalanced |
| Connectors | |
| "To VCR In" | 1 pair RCA |
| "To Destination" | (1) 3.5 mm captive screw connector, 5 pole |
| Impedance | >50k ohms unbalanced, 100k ohms balanced |
| Maximum level | |
| "From Source" | +25 dBu, balanced at 1% THD+N |
| "From VCR Out" | +11 dBV, unbalanced at 1% THD+N |
|
| Control/remote — feedback isolator |
|---|
| Contact closure | (1) 3.5 mm captive screw connector, 2 pole |
|
| General |
|---|
| External power supply | 100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A (max), regulated |
| Power input requirements | 12 VDC, 0.2 A |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf kit |
| Furniture mount | Yes, with optional brackets |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 4.4" W x 3.0" D (1U high, quarter rack wide)
(4.3 cm H x 11.3 cm W x 7.6 cm D)
(Depth excludes connectors.) |
| Product weight | 0.7 lbs (0.3 kg) |
| Shipping weight | 3 lbs (2 kg) |
| Warranty | 3 years parts and labor |
| (7.6-101509-D8) |
