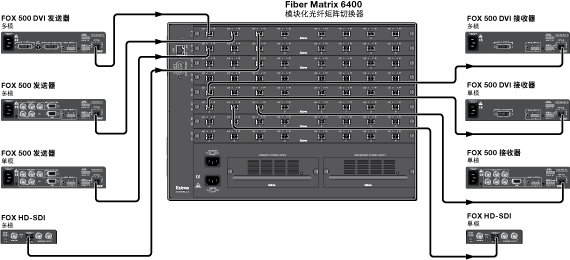

Extron Fiber Matrix 6400 是一款高性能、模块化的光纤矩阵切换器，适用 于需要通过光纤进行完整的端对端数字视音频传输和路由的系统.

它采用 模块化板卡插槽设计，尺寸可从 8x8 扩展为 64x64，并且支持速率高达 4.25 Gbps 的数字信号切换。Fiber Matrix 6400 配备热插拔输入/输出板、 完全冗余电源以及实时系统监视，是需要 24 小时可靠性以及连续运行的 关键任务应用环境的理想之选。

技术参数

Fiber Matrix 6400
NOTE     The Fiber Matrix 6400 fiber optic I/O boards are class 1 laser products. They meet the safety regulations of IEC-60825, FDA 21, CFR 1040.10, and FDA 21 CFR 1040.11.
Optical specifications
Number/type	8 singlemode or 8 multimode fiber optic inputs and outputs per I/O board
NOTE     Only one fiber is required to transmit video, audio, and unidirectional data.  A second fiber is required to transmit return data for bidirectional control/communication.
Connectors	8 LC connectors per I/O board
Operating distance
Singlemode	30 km (18.75 miles) with singlemode (SM) cables with an Extron singlemode Tx/Rx unit
Multimode	300 m (985') with 62.5 µm multimode (MM) cables with an Extron multimode Tx/Rx unit 1 km (3280') with 50 µm multimode (MM) cables with an Extron multimode Tx/Rx unit 2 km (6561') with 50 µm 2000 MHz bandwidth laser multimode cable with an Extron multimode Tx/Rx unit
NOTE     Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Nominal peak wavelength	850 nm for multimode (MM), 1310 nm for singlemode (SM)
Transmission power
Singlemode	-5 dBm, typical
Multimode	-5 dBm, typical
Maximum receiver sensitivity
Singlemode	-18 dBm, typical
Multimode	-12 dBm, typical
Optical loss budget
Singlemode	13 dB, maximum
Multimode	7 dB, maximum
Maximum channel data rate	4.25 Gbps
Video
Routing	8 x 8 up to 64 x 64 unidirectional (Tx) matrix or 4 x 4 up to 32 x 32 bidirectional (Tx/Rx) matrix
Gain	Unity
Pixel data bit depth	8 bits per channel, 3 channels (R, G, B)
Video/audio input
Number/signal type	8 to 64 fiber optic signals
Connectors	8 LC connectors per I/O board
NOTE     Input comes from an Extron fiber optic transmitter or fiber optic distribution amplifier.
Video/audio output
Number/signal type	8 to 64 fiber optic signals
Connectors	8 LC connectors per I/O board
NOTE     Output connects to an Extron fiber optic receiver.
Digital video — 3G HD-SDI I/O board (multi-rate SDI)
Routing	8 x 8 matrix per I/O card, up to 64 x 64
Gain	Unity
Maximum data rate	2.97 Gbps
Data types	8 or 10 bit
Operation standards	SMPTE 292M, SMPTE 259M, SMPTE 424M, ITU-RBT.601, ITU-RBT.1120
Digital video input — 3G HD-SDI I/O board (multi-rate SDI)
Number/signal type	8 single link SDI, HD-SDI, or 3 Gbps HD-SDI
Connectors	8 female BNC
Nominal level	0.80 Vp-p ±10%
Impedance	75 ohms
Return loss	<-15 dB @ 1 MHz to 1.5 GHz
Equalization	Automatic
Input cable equalization distance
HD-SDI
Extron SHR, Belden 1694A cable	492' (150 m)
Extron HR, Belden 1505A cable	328' (100 m)
SDI
Extron SHR, Belden 1694A cable	984' (300 m)
Extron HR, Belden 1505A cable	656' (200 m)
NOTE     The transmission distance varies depending on the signal resolution and on the type of cable, graphic card, and display used in the system.
Digital video output — 3G HD-SDI I/O board (multi-rate SDI)
Number/signal type	8 single link SDI, HD-SDI, or 3Gbps HD-SDI
Connectors	8 female BNC
Nominal level	0.80 Vp-p ±10%
Return loss	<-15 dB @ 1 HHz to 1.5 GHz
DC offset	±0.5 V with input at 0 offset
Re-clocking	Automatic, or use available bypass mode for nonstandard rates
Jitter	<0.2 VI
Rise/fall time (20-80%)
SDI	700 ps ±100 ps
HD-SDI	250 ps ±100 ps
Control/remote — switcher
Serial control port	1 bidirectional RS-232 or RS-422, female 9-pin D connector (rear panel) 1 bidirectional RS-232, 2.5 mm mini stereo jack (front panel )
Baud rate and protocol	9600 to 115200 baud, 9600 baud (default), 8 data bits, 1 stop bit, no parity
Serial control pin configurations
9-pin female D connector	RS-232: 2 = Tx, 3 = Rx, 5 = GND RS-422: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+
Mini stereo jack	RS-232: tip = Tx, ring = Rx, sleeve = GND
Ethernet control port	1 female RJ-45 connector
Ethernet data rate	10/100Base-T, half/full duplex with autodetect
Ethernet protocol	ARP, ICMP (ping), IP, TCP, UDP, DHCP, HTTP, SMTP, Telnet
Default settings	Link speed and duplex level = autodetected IP address = 192.168.254.254 Subnet mask = 255.255.0.0 Gateway = 0.0.0.0 DHCP = off
Web server	Up to 200 simultaneous sessions 3 MB nonvolatile user memory
Program control	Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™) Microsoft® Internet Explorer ver. 6 or higher, Telnet
General
Power*	2 (positive-negative), 100 VAC to 240 VAC, 50-60 Hz; internal Enclosure without boards: 35 watts at 115 VAC, 60 Hz Enclosure fully loaded with 8 boards: 115 watts at 115 VAC, 60 Hz Each module board: 10 watts at 115 VAC, 60 Hz *A redundant power supply is standard.
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Fan, right to left (as viewed from front panel)
Mounting
Rack mount	Yes
Enclosure type	Metal
Enclosure dimensions	12.25" H x 17.0" W x 12.25" D (7U high, full rack wide) (31.1 cm H x 43.1 cm W x 31.1 cm D) (Depth excludes connectors and front handles. Width excludes rack ears.)
Product weight (fully loaded)	35.8 lbs (16.2 kg)
Shipping weight	43 lbs (20 kg)
DIM weight
USA/Canada	146 lbs (63 kg)
International	171 lbs (78 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL
EMI/EMC	CE, C-tick, FCC Class A, ICES, VCCI
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
