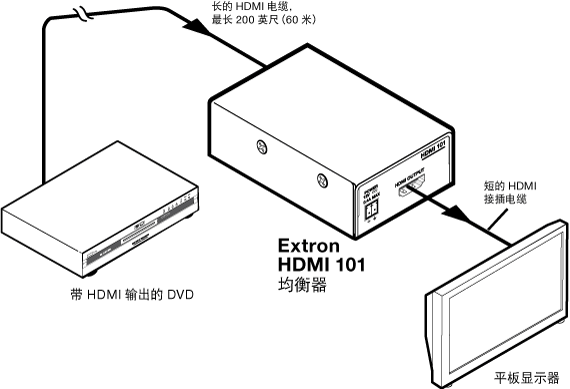

Extron HDMI 101 是一款 HDMI 电缆均衡器，它为延长 HDMI 信号提供了方 便、经济的解决方案，使其传输距离超过了建议的 HDMI 电缆的 15 m（45'） 距离限制。HDMI 101 连接到最长可达 200'（60 m）的 HDMI 长距离电缆的末 端。它自动提供必要的动态均衡处理，确保分辨率高达 1080p/60 的 HDTV 信号以及高达 1920x1200 的高分辨率计算机视频信号达到最佳的图像质 量。对于使用长距离 HDMI 电缆的临时性应用和永久性安装来说，HDMI 101 都是理想之选。

技术参数

HDMI 101
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Video
Maximum data rate	4.95 Gbps (1.65 Gbps per color)
Maximum pixel clock	165 MHz
Resolution range	Up to 1920x1200 or 1080p @ 60 Hz
Formats	RGB and YCbCr digital video
Standards	DVI 1.0, HDMI 1.2
Video input
Number/signal type	1 single link HDMI (or DVI-D*)
Connectors	1 female HDMI type A
Equalization	Automatic for up to -40 dB of cable loss
Input cable length	Up to 200' (61 m) at 1080p or 1920x1200 @ 60 Hz Up to 250' (76 m) at 720p, 1080i, or 1024x768 @ 60 Hz Longer distances are possible with lower rates and/or high quality cable.
NOTE     The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphics card, and display used in the system.
Video output
Number/signal type	1 single link HDMI (or DVI-D*)
Connectors	1 female HDMI type A
Output cable length	Up to 15' (5 m)
General
Power	Supplied by an external power supply or by the 5 V signal from an HDMI source (pin 18) or a DVI source (pin 14)
External Power supply	100 VAC to 240 VAC, 50/60 Hz, external; to 12 VDC, 1 A, regulated
Power input requirements	12 VDC, 0.2 A from an external power supply or 5 VDC, 0.05 A from an HDMI or DVI source
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting
Rack mount	Yes, with optional 1U, 9.5" deep rack shelf (RSU 129, #60-190-01; RSB 129, 60-604-01); 1U, 6" deep rack shelf (RSU 126, #60-190-10; RSB 126, 60-604-10); or 1U, 3.5" deep VersaTools® rack shelf (RSF 123, #60-190-20; RSB 123, 60-604-20)
Furniture mount	Yes, with optional MBU 125 Under-Desk Mounting Kit, #70-077-01
Enclosure type	Metal
Enclosure dimensions	1.0" H x 2.2" W x 3.0" D (one eighth rack wide) (2.5 cm H x 5.6 cm W x 7.6 cm D)
Product weight	0.4 lbs (0.2 kg)
Shipping weight	2 lbs (1 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, CUL, UL
EMI/EMC	CE, C-tick, FCC Class A, ICES, VCCI
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(7.6-121008-D5)
