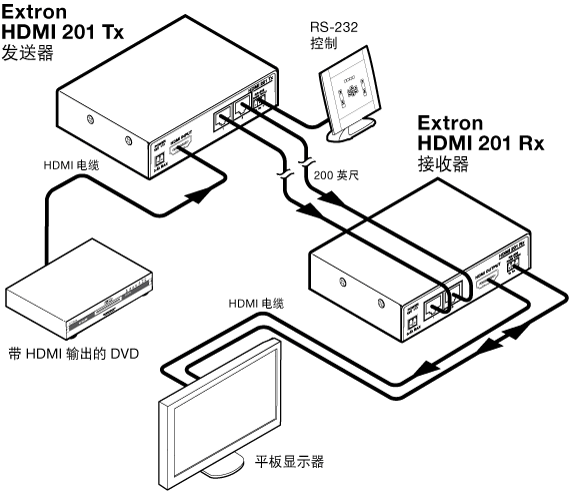

Extron HDMI 201 是一组发送器和接收器，可以传输 HDMI 或 DVI 信号，并且传输距离大大超过标准 HDMI 或 DVI 电缆的距离限制。与两根经济且方便集成的 CATx 或 Extron STP201 电缆相连接，HDMI 201 发送器和接收器配合使用时可以将 HDTV 和 XGA 1024x768 分辨率的 HDMI 或单链路 DVI 信号传输超过 60 m (200') 远的距离。

技术参数

HDMI 201 Tx/Rx
NOTE     This product consists of a transmitter (HDMI 201 Tx) and a receiver (HDMI 201 Rx) with twisted pair cables linking the transmitter and receiver.
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Video
Maximum data rate	4.95 Gbps (1.65 Gbps per color)
Maximum pixel clock	165 MHz
Resolution range	Up to 1920x1200 or 1080p @ 60 Hz
Formats	RGB and YCbCr digital video
Standards	DVI 1.0, HDMI
Video input — Tx units
Number/signal type	1 single link HDMI (or DVI-D*)
Connectors	1 female HDMI type A
Interconnection between transmitter and receiver
Connectors	2 female RJ-45 per unit for 2 cables connecting the transmitter and receiver
Termination standards	TIA/EIA T568A or T568B
Signal transmission distance
1920x1200 or 1080p @ 60 Hz
Extron STP201 cable	Up to 150' (45 m)
CAT 5/5e/6 STP	Up to 125' (38 m)
CAT 5/5e/6 UTP	Up to 100' (30 m)
720p/1080i or 1024x768 @ 60 Hz
CAT 5/5e/6 UTP or STP or Extron STP201	200' (60 m)
NOTE     The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphics card, and display used in the system.
NOTE     Shielded twisted pair cable provides added protection from outside interference and increases overall signal transmission distance. Extron strongly recommends using shielded twisted pair for optimal performance.
Video output — Rx units
Number/signal type	1 single link HDMI (or DVI-D*)
Connectors	1 female HDMI type A
Control/remote — external device (pass-through)
Serial control port input
Transmitter	RS-232 via (1) 3.5 mm, 3 pole captive screw connector
Receiver	1 set of proprietary signals on a female RJ-45 jack
Serial control port output
Transmitter	1 set of proprietary signals on a female RJ-45 jack
Receiver	RS-232 via a 3.5 mm, 3 pole captive screw connector
NOTE     Protocol is mirrored between the transmitter and the receiver.
Serial control pin configuration	Captive screw connectors: 1 = Tx, 2 = Rx, 3 = GND
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12 watts
Power consumption
HDMI 201 Tx	2.2 watts, 12 VDC
HDMI 201 Rx	4.0 watts, 12 VDC
NOTE     Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or transmitter on the other end of the CAT 5/5e/6 or Extron STP201 cables.
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting
Rack mount	Yes, with optional 1U deep rack shelf
Furniture mount	Yes, with optional under-desk mounting kit
Pole mount	Yes, with optional pole mount kit
Enclosure type	Metal
Enclosure dimensions	1.0" H x 4.3" W x 3.0" D (quarter rack wide) (2.5 cm H x 10.9 cm W x 7.6 cm D) (Depth excludes connectors.)
Product weight	0.5 lbs (0.3 kg)
Shipping weight	3 lbs (2 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL
EMI/EMC	CE**, C-tick, FCC Class A**, ICES, VCCI
NOTE     **CE and FCC testing is conducted with STP (shielded twisted pair) cable.
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(8.0-021412-D17)
