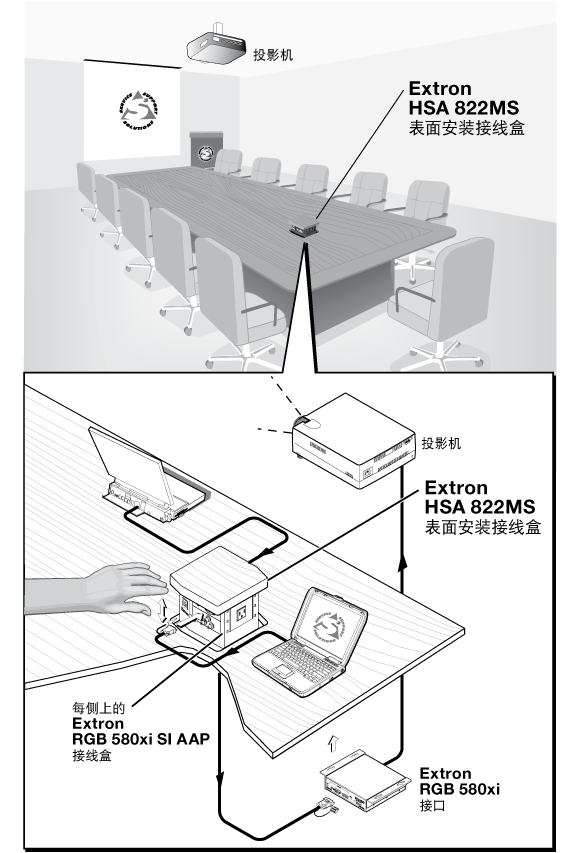

| HSA 822MS |
|
| Control/remote |
|---|
| Contact closure | (1) 3.5 mm female captive screw connector, 10 pole |
| Contact closure pin configurations | Pin 1 = up, pin 2 = down, pin 3 = stop, pin 5 = enable push operation,
pin 6 = status up, pin 7 = status down, pin 9 = status power,
pins 4, 8, and 10 = ground |
|
| General |
|---|
| NOTE | The Universal AC outlet is fully compatible with Europlug, British, Indian, Danish, and Italian plug types. See the Universal AC outlet guide on the Extron Web site, www.extron.com, for compatibility details on all plug types. |
|
| Power | 100 VAC to 240 VAC, 50-60 Hz, 25 watts, internal |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Mounting | |
| Furniture mount | Yes |
| Min./max. table thickness | 0.75" to 1.75" (0.56 cm to 4.45 cm) |
| Maximum load capacity | 5 lbs (2.3 kg) |
| Enclosure type | Metal |
| |  |
| Enclosure dimensions | |
| CAUTION | Refer to the surface cutout dimensions here before cutting a hole in the furniture or other surface. Pay special attention to the direction the unit will face; the unit's AAP and connector access side is underlined. Extron is not responsible for miscut mounting holes. |
|
| Top plate (outer rim) | 9.54" W x 9.82" D (24.23 cm W x 24.94 cm D) |
| Top plate (vertically lifting plate, not included—to be provided by customer) | 6.14" W x 6.42" D (15.49 cm W x 16.31 cm D) |
| Surface cutout | 6.22 +0.00/-0.02" W (AAP access from front and back) x 6.50 +0.00/-0.02" D
(15.80 +0.00/-0.05 cm W x 16.51 +0.00/-0.05 cm D) |
| Clamshell tray (see diagram) | A = 1.09" (2.77 cm) (tray height)
B = 7.30" (18.54 cm)
C = 10.87" (27.6 cm) |
| Overall height under table including tray | 9.48" (24.1 cm) |
| Product weight | 10.0 lbs (4.5 kg) |
| Shipping weight | 17 lbs (8 kg) |
| Regulatory compliance | |
| Safety | CE, CSA C/US, c-UL, UL |
| Product warranty | 3 years parts and labor |
| NOTE | Specifications are subject to change without notice. |
|
