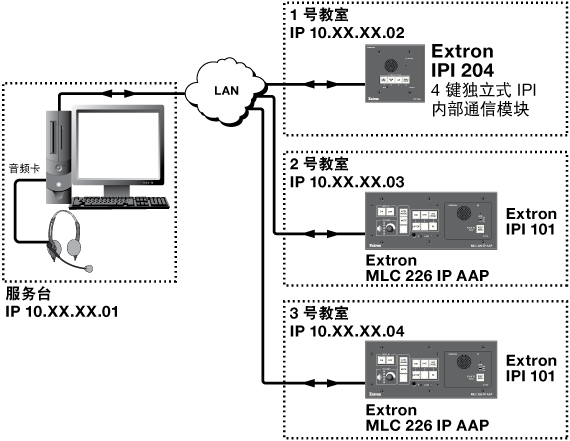

| IPI 204 |
|
| Audio |
|---|
| Speaker | 1.4" (35.6 mm), 1-way, indoor |
| Frequency response | |
| Line level output | 20 Hz to 3.3 kHz, ±1 dB |
| Speaker output | 300 Hz to 3.3 kHz, -10 dB |
| Nominal sensitivity/IPI speaker output level | 80 dB SPL, 300 mW, 3' (1 m) |
| Processing | |
| Audio format | PCM, µ-law companded |
| Sampling rate | 8 kHz |
| Sample size | 16 bit, µ-law companded to 8 bit |
| Audio latency | <100 ms |
|
| Audio input |
|---|
| Number/signal type | 1 mono, via integrated electret microphone |
| Microphone gain | -30 dB to 0 dB, adjustable in 2 dB steps |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output |
|---|
| Number/signal type | 2 mono: 1 via audio output port, 1 via IPI speaker |
| Line level output | -10 dBV (316 mVrms), balanced/unbalanced (via 3.5 mm captive screw connector, 3 pole) |
| Amplified speaker output | 300 mW, continuous, 1% THD |
|
| Ethernet control interface |
|---|
| Ethernet control/communications port | 1 female RJ-45 connector |
| Ethernet data rate/transport bandwidth | 80 kbps |
| Communications type | Half duplex |
| Ethernet protocol | IP (control), TCP (control), UDP (port 3121, audio), Telnet |
| Default settings | Link speed and duplex level: autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off |
| Program control | Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™)
Microsoft® Internet Explorer ver. 6 or higher, Telnet |
|
| Control — relay |
|---|
| Number/type | 1 momentary or latching (configurable) |
| Connector | (1) 3.5 mm captive screw connector, 2 pole, C (common) and NO (normally open) for configurable relay output |
| Contact rating | 24 V, 1 A |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts |
| Power input requirements | +12 VDC, 0.25 A |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Mounting | |
| Rack mount | Yes, with optional faceplate and rack mounting kit |
| Furniture mount | Yes, furniture- and wall-mountable with optional faceplate and mounting kits |
| Enclosure type | Metal faceplate |
| Enclosure dimensions | |
| Faceplate | 4.5" H x 4.6" W x 0.1" D (114 mm H x 117 mm W x 3 mm D) (fits some 2 gang boxes) |
| Device | 2.8" H x 2.7" W x 1.85" D
(69 mm H x 66 mm W x 49 mm D)
(Depth excludes buttons. Allow at least 2.25" [55 mm] depth in the wall or furniture.) |
| |  |
| Product weight | 0.5 lbs (0.2 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4396-D6-091318) |
