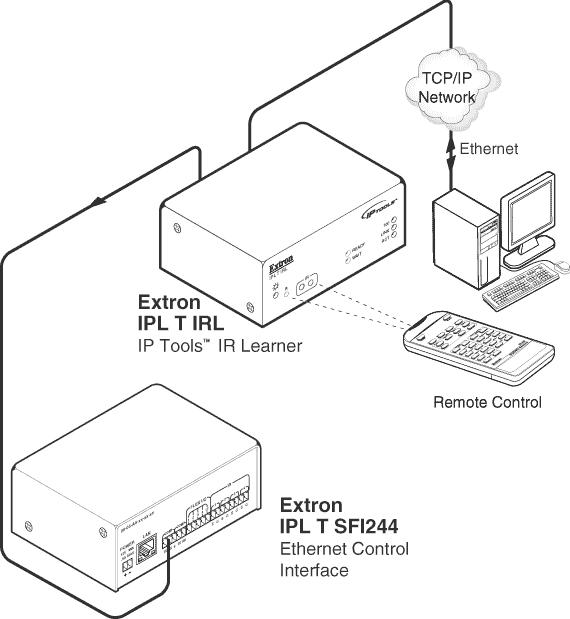

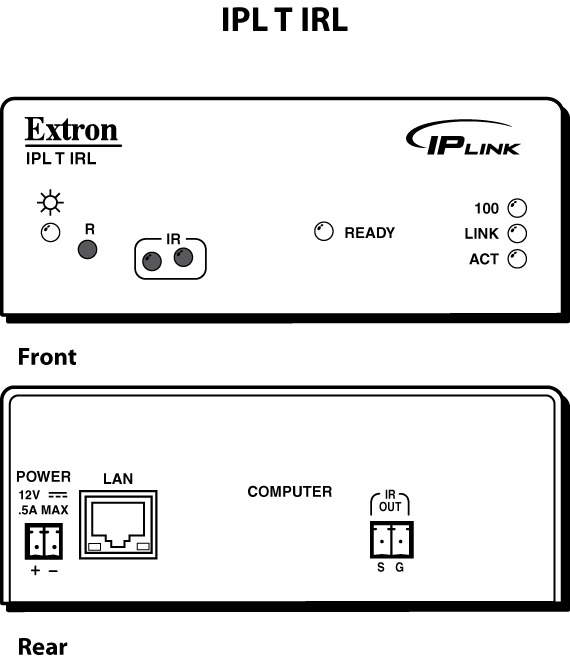

| IPL T IRL Infrared Learner |
|
| Ethernet control interface |
|---|
| Connectors | 1 RJ-45 female connector |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | ARP, DHCP, ICMP (ping), TCP/IP, UDP/IP, Telnet, HTTP, SMTP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off |
|
| Serial configuration interface |
|---|
| Port number/type | 1 RS‑232 serial |
| Connectors | (1) 9-pin female D |
| Baud rate and protocol | 115200 baud, 8 data bits, 1 stop bit, no parity |
| Pin configurations | 2 = TX, 3 = RX, 5 = GND |
|
| IR/serial (IR/S) control interface |
|---|
| Output number | 1 |
| Connectors | (1) 3.5 mm, 2 pole captive screw connector |
| IR output carrier frequency | 30 kHz to 1 MHz |
| IR learning carrier frequency | 30 kHz to 1 MHz |
| IR learning capture distance | 2" (5.1 cm) to 12" (30.5 cm) from the front panel |
| Pin configurations | pins 1 = signal
pin 2 = GND |
|
| General |
|---|
| External power supply | 100 VAC to 240 VAC, 50/60 Hz, external, autoswitchable; to 12 VDC, 1 A, regulated |
| Power input requirements | 12 VDC, 0.5 A |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Rack mount | Yes, with optional 1U 9.5" deep rack shelf kit, part #60-190-01; or the 1U 3.5" deep VersaTools® rack shelf kit, part #60-190-20
Also under-furniture mountable with optional bracket kit #70-212-01 |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
4.3 cm H x 10.9 cm W x 7.6 cm D
(Depth excludes connectors.) |
| Product weight | 0.7 lbs (0.3 kg) |
| Shipping weight | 2 lbs (1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Listings | UL, CUL
UL rated for use in a plenum air space: meets UL2043 and UL60950 for fire and smoke. |
| Compliances | CE, FCC Class A, VCCI, AS/NZS, ICES |
| MTBF | 30,000 hours |
| Warranty | 3 years parts and labor |
| NOTE | | All nominal levels are at ±10% |
|
| NOTE | | Specifications are subject to change without notice. |
|
| (7.51-020106-D4) |
