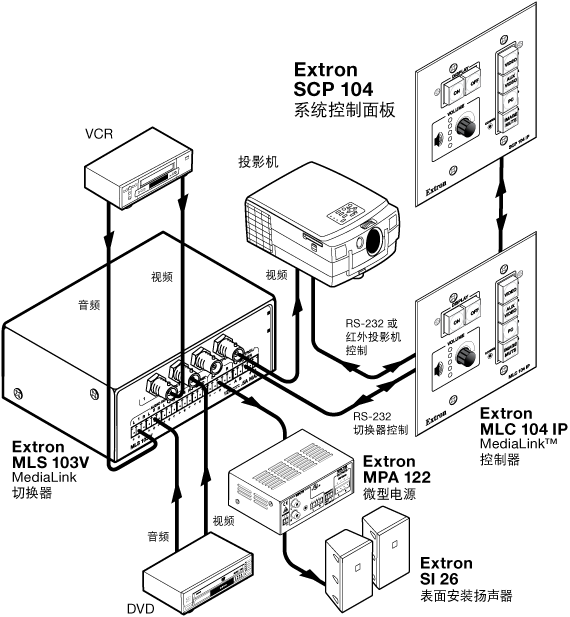

| SCP 226 Series, SCP 104 Series |
|
| Control/remote — control pad |
|---|
| Serial control port | RS-232, via a 3.5 mm captive screw connector, 3 pole |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configurations | A = TX, B = RX, C = GND |
| IR remote control | IR 402 (for SCP 226 only, optional)
30' maximum, 40 degrees off axis |
| Program control | Extron's Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power | Supplied by an Extron MediaLink® Controller or an external power supply |
| External power supply (optional) | 100 VAC to 240 VAC, 50/60 Hz, external, autoswitchable; to 12 VDC, 1 A, regulated |
| Power input requirements | 12 VDC, 0.18 A |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Rack mount | Yes, with an optional faceplate, UCM RAAP, part #70-344-02 or 70-344-03
Also wall or furniture mountable |
| Enclosure type | Metal |
| Enclosure dimensions | |
| SCP 226 Series | |
| SCP 226 faceplate | 4.5" H x 6.4" W x 0.1" D (11.4 cm H x 16.3 cm W x 0.3 cm D) (3 gang) |
| SCP 226 AAP faceplate | 4.5" H x 10.1" W x 0.1" D (11.4 cm H x 25.7 cm W x 0.3 cm D) (5 gang) |
| SCP 226 L faceplate | 3.2" H x 6.5" W x 0.1" D (8.1 cm H x 16.5 cm W x 0.3 cm D) |
| Device | 2.7" H x 5.2" W x 0.5" D (6.9 cm H x 13.2 cm W x 1.3 cm D)
(Allow at least 1.5" [3.8 cm] depth in the wall or furniture. Depth excludes connectors, knob, and buttons.) |
| SCP 104 Series | |
| SCP 104 faceplate | 4.5" H x 4.6" W x 0.1" D (11.4 cm H x 11.7 cm W x 0.3 cm D) (2 gang) |
| SCP 104 AAP faceplate | 4.5" H x 8.25" W x 0.1" D (11.4 cm H x 21.0 cm W x 0.3 cm D) (4 gang) |
| SCP 104 L faceplate | 3.2" H x 6.5" W x 0.1" D (8.1 cm H x 16.5 cm W x 0.3 cm D) |
| Device | 2.7" H x 3.4" W x 0.5" D (6.9 cm H x 8.6 cm W x 1.3 cm D)
(Allow at least 1.5" [3.8 cm] depth in the wall or furniture. Depth excludes connectors, knob, and buttons.) |
| Product weight | 0.3 lbs (0.1 kg) |
| Shipping weight | 2 lbs (1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Listings | UL, CUL |
| Compliances | CE, FCC Class A, VCCI, AS/NZS, ICES |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (7.51-020305-D2) |
