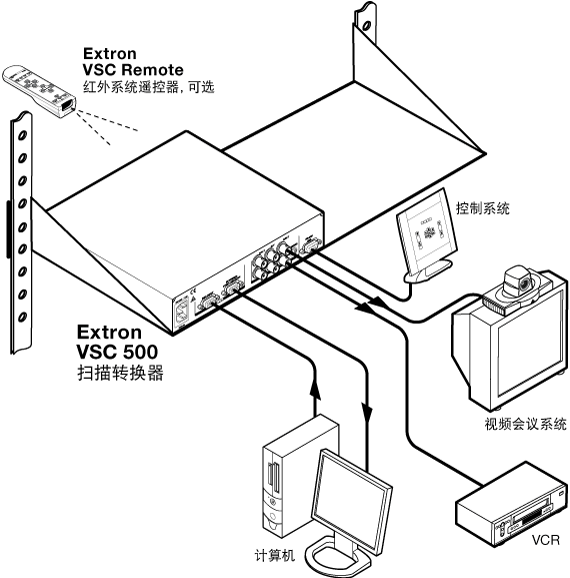

| VSC 500 Scan Converter |
|
| Video input |
|---|
| Number/signal type | 1 RGBHV, RGBS, RGsB with 1 buffered loop-through |
| Connectors | (1) 15-pin HD for input, (1) 15-pin HD for loop-through |
| Nominal level | 0.7 Vp-p for RGB |
| Minimum/maximum levels | 0 V to 2.0 Vp-p with no offset at unity gain |
| Impedance | 75 ohms |
| Horizontal frequency | Autoscan 24 kHz to 100 kHz |
| Vertical frequency | Autoscan 50 Hz to 120 Hz |
| Resolution range | Autoscan 560 x 384 to 1920 x 1200; 480p, 720p, 1080i, 1080p (RGB only) |
| Maximum DC offset | 2.0 V |
|
| Video processing |
|---|
| Encoder | 10 bit digital |
| Digital sampling | 24 bit, 8 bits per color |
| Colors | 16.8 million |
| Horizontal filtering | 1 fixed level |
| Flicker filtering | 4 levels (selectable) |
| Encoder filtering | 4 levels |
|
| Video output |
|---|
| Number/signal type | 1 RGBHV, RGBS, RGsB, or component video
1 S-video, 1 composite video |
| Connectors | 5 BNC female: RGBHV/RGBS/RGsB/component video
(1) 4-pin mini-DIN female: S-video
1 BNC female: composite video |
| Nominal level | 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | 0.0 V to 0.7 Vp-p (RGB)
0.0 V to 1.0 Vp-p (component video, G of RGsB) |
| Impedance | 75 ohms |
|
| Sync |
|---|
| Input type | Autodetect RGBHV, RGBS, RGsB |
| Output type | RGBHV, RGBS, RGsB |
| Standards | NTSC 3.58, PAL |
| Input level | 1.5 V to 5.0 Vp-p |
| Output level | TTL: 5.0 Vp-p, unterminated |
| Input impedance | 600 ohms |
| Output impedance | 75 ohms |
| Max. input voltage | 5.0 Vp-p |
| Polarity | Negative |
|
| Control/remote — scan converter |
|---|
| Serial control port | RS-232 or RS-422, 9-pin female D connector |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configurations |
| RS-232 | 2 = Tx, 3 = Rx, 5 = GND |
| RS-422 | 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+ |
| IR controller module | VSC Remote |
| Program control | Extron's control/configuration program for Windows®
Extron's Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power | 100 VAC to 240 VAC, 50/60 Hz, 40 watts, internal |
| Ambient temperature/humidity | Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensing
Operating +32° to +122°F (0° to +50°C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Mounting |
| Rack mount | Yes, with optional 1U, 9.5" rack shelf, part #60-190-01 (RSU 129) or 60-604-01 (RSB 129) |
| Enclosure type | Metal |
| Enclosure dimensions | 1.75" H x 8.75" W x 10.5" D (1U high, half rack wide)
(4.4 cm H x 22.2 cm W x 26.7 cm D)
(Depth excludes knobs.) |
| Product weight | 2.4 lbs (1.1 kg) |
| Shipping weight | 7 lbs (4 kg) |
| Vibration | ISTA/NSTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
| Safety | CE, CUL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of WEEE. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (7.6-012709-D6) |
