VTT001 AAP 停产

VT - VGA 双绞线发送器 - AAP 模块

主要特性

输入：15 针HD 插座
输出：8厘米抽头上的 RJ-45 插座
安装在可接受双格 AAP — 结构化适配板的产品上

产品说明	产品编号
Transmitter AAP Version - Black	70-258-11	停产
Transmitter AAP Version - White	70-258-21	停产

该产品已停产。

Extron VTT001 和 VTR001 系列双绞线发送器和接收器配合工作将高分辨率 VGA/RGBHV 信号通过任何 CAT 5、5e或 6 类双绞线电缆或Extron 增强型等长无扭曲音视频非屏蔽双绞线（Enhanced Skew-Free™ AV UTP）电缆发送到90米以外.

VTT001 和 VTR001 系列与分辨率高达1600 x 1200 的 RGBHV 或 RGBS 信号兼容，最适合于会议室、大型培训中心或其它要求以紧凑、简约的方式将计算机-视频信号通过非屏蔽双绞线电缆远距离传送的应用。

特性

输入：15 针HD 插座

输出：8厘米抽头上的 RJ-45 插座

安装在可接受双格 AAP — 结构化适配板的产品上

通过单根 CAT 5、5e或 6 类UTP电缆在90米或更远范围内发送和接收高分辨率计算机-视频信号

与VGA-UXGA、Mac、Sun® 和SGI® 计算机兼容

备有桌面安装、MAAP 安装和AAP 安装型

发送远程电源能力

前面板上备有LED 指示灯

提供外置型国际通用电源，产品编号为 # 70-055-01

注: Part numbers 70-258-01, 70-258-11, 70-258-21 and 70-258-51 have been retired.

相似产品

1 个 15 针 HD 插座对插座变换器

1 个 15 针 HD 插座对插座变换器，1 个 3.5 mm 立体声 mini 插孔对焊片

1 个 3.5 mm mini 立体声音频插孔对焊片

1 个 HDMI 插座对 10" 引线上的插座

1 个 HDMI 插座对 10" 引线上的插座，1 个 3.5 mm Mini 立体声音频插孔对螺丝锁定器

1 个 HDMI 插座对 10" 引线上的插座，带；1 个瞬时开关对 4" 引线上的螺丝锁定器

1 个 Neutrik Speakon 插头对焊片 - 4 极

1 个 RJ-11 插座对插座直通接头 - 电话

1 个 USB A 型插座对 10" 引线上的 1 个 USB B 型插座

1 个 USB A 型插座对 10" 引线上的插座

1 个 USB A 型插座对 10" 引线上的插座，1 个 RJ-45 插座对插座直通接头 - CAT 5e

1 个 USB A 型插座对 USB B 型插座适配器

1 个 XLR 3 针插头对焊杯 - Switchcraf

1 个 XLR 3 针插头对焊杯，1 个 XLR 3 针插座对焊杯 - Neutrik

1 个 XLR 3 针插座对焊杯 - Neutrik，1 个 RJ-45 直通接头 - CAT 5e

1 个 XLR 3 针插座对焊杯- Neutrik

1 个 XTP DTP 24 打线式插座

用于 XTP DTP 24 屏蔽双绞线电缆的微型视音频连接模块 - CAT 6A

1 个 XTP DTP 24 耦合器

用于 XTP DTP 24 屏蔽双绞线电缆的视音频连接模块 - CAT 6A

1 个 XTP DTP 打线式插座

用于 XTP DTP 屏蔽双绞线电缆的 Mini 视音频连接模块 - CAT 6A

2 个 1/4" 立体声话筒插孔对焊片

2 个 3.5 mm mini 立体声音频插孔对焊片

2 个 3.5 mm Mini 立体声音频插孔对螺丝锁定端子

2 个 6 针微型 DIN 插座至裸线 - 键盘/鼠标

2 个 BNC 插座对插座直通接头

2 个 HDMI 插座对 10" 引线上的插座

2 个 Neutrik Speakon 插头对焊片 - 4 极

2 个 RCA 插座对焊杯

2 个 RJ-45 屏蔽插座对插座直通接头 - CAT 5e

2 个 RJ-45 插座到插座直通接头 - CAT 5e

2 个 RJ-45 插座对 CAT 6 打线式插座

2 个 RJ-45 插座对 CAT 6 打线式插座 - AMP

2 个 RJ-45 插座对 CAT 6 打线式插座 - Ortronics

2 个 RJ-45 插座对 CAT 6 打线式插座 - Panduit

2 个 RJ-45 插座对 CAT 6 打线式插座 - Siemon

2 个 RJ-45 插座对 CAT 6A 打线式插座 - Systimax MGS 系列

2 个 RJ-45 插座对插座直通接头 - CAT 5e

2 个 USB A 型插座对 10" 引线上的插座

2 个 USB A 型插座对 USB B 型插座适配器

2 个 USB A 型插座对引线上的 2 个 USB B 型插座

2 个 XLR 3 针插头对焊杯- Neutrik

2 个 XLR 3 针插座对焊杯

2 个 XTP DTP 24 打线式插座

用于 XTP DTP 屏蔽双绞线电缆的视音频连接模块 - CAT 6A

2 个 XTP DTP 24 耦合器

用于 XTP DTP 24 屏蔽双绞线电缆的视音频连接模块 - CAT 6A

2 个 XTP DTP 打线式插座

用于 XTP DTP 屏蔽双绞线电缆的视音频连接模块 - CAT 6A

2 个光纤双工 LC 插座对插座直通接头

AAP 100

薄型视音频连接安装框架

AAP 102

两单元视音频连接安装框架

AAP 103 AKM UK

AV Connectivity Mounting Frame for Ackermann UK Floor Boxes

AAP 106

六单元视音频连接安装框架

AAP SuperPlate 系列

用于 HDMI、VGA、立体声音频、网络和 USB 信号的视音频连接模块

AAP 丝网印刷模块

AC MAAP

AC Power Module

AC Net AAP

AC 插座和 RJ-45 AAP 视音频连接模块

AC USB AAP

AC 电源插座和 USB A 引线 AAP 视音频连接模块

Blank Plate with One Neutrik Opening

Blank Plate with Two Keystone Openings

Blank Plate with Two Neutrik Openings

Cable Organizer AAP Kit

Quad Space AAP for Cable Cubby® Series of Furniture-Mountable Enclosures

Captive Cable Kit with Three Split-Ring Holes

Cable Pass-Through MAAP Mini AV Connectivity Module

CCR 2BLB

Two-Button Contact Closure Remote With Customizable Backlit Buttons

CCR 4BLB

Four-Button Contact Closure Remote With Customizable Backlit Buttons

DUAL AC AAP

Two AC Outlet AAP AV Connectivity Modules

Four RJ-45 Female to Female Barrels - CAT 5e

IN9350

空板 - 单格

IN9351

Two BNC Female to Female Barrels

IN9356

One 5-pin Captive Screw Terminal to Solder Tabs

IN9359

1 个 RJ-45 插座对打线式插座 - CAT 5

IN9359D

One RJ-45 Female to Punch Down - CAT 6

IN9361

1 个 15 针 HD 插座到插座变换器

IN9364D

One XLR 4-pin Female to Solder Cups - Neutrik

IN9365D

1 个 XLR 3 针插座对焊杯- Neutrik

IN9367D

空白模块 - 双格

IN9368T

Blank Plate - Triple

IN9369Q

Blank Plate - Quad

IN9374

One 9-pin D Female to Female Gender Changer

IN9381

1 个 BNC 插座对插座直通接头

IN9385

1 个 3.5mm Mini 立体声音频插孔对焊片

IN9454

1 个 RJ-45 插座对插座直通接头 - CAT 5e

IN9454D

One RJ-45 Female to Female Barrel - CAT 5e

IN9457

Two 3.5 mm Stereo Mini Jack to Captive Screw Terminal

IN9458

One 3.5 mm Stereo Mini Jack to Captive Screw Terminal

IN9467

1 个 USB 2.0 A 型连接器对螺丝锁定器

IN9473D

One Neutrik Speakon Male to Solder Tabs - 4 Pole

IN9477

One RJ-45 Female to Punch Down for CAT 6

IN9478D

One RJ-45 Female to Punch Down for CAT 6

IN9482

Captive Cable Kit with One Large Cable Hole

IN9483

Captive Cable Kit with Two Small Cable Holes

IN9486D

One RJ-45 Female to Punch Down – CAT 5e Neutrik EtherCon

Interface AAP

接口远程连接器板

MAAP 100

薄型视音频连接安装框架

MLC 62 RS EU

用于欧式接线盒的 MediaLink 控制器

One 15-pin HD Female to Female on 6" Pigtail, One 3.5 mm Mini Jack on Captive Screw

One HDMI Female to Female on 10" Pigtail, One RJ-45 Female to Female Barrel - CAT 5e

One RJ-11 Female to Punch Down - Phone

One RJ-45 Female to Female Barrel - CAT 5e

One RJ-45 Female to Punch Down - CAT 5

One RJ-45 Female to Punch Down - CAT 5e Neutrik EtherCon Ruggedized Connector

One RJ-45 Female to Punch Down for CAT 6

One USB-C Female to HDMI Female on Pigtail

One XLR 3-pin Male to Solder Cups - Neutrik

Single Space Cable Pass-Through

UCM 100

Universal Controller Mount for Flex55 and EU Modules

USB HUB4 AAP

四端口 USB 集线器 - AAP 型

USB HUB4 MAAP

四端口 USB 集线器 - MAAP 型

USB PowerPlate 200 系列

两插座 USB 电源适配器

一个 USB A 型插座对 10" 引线上的 USB B 型插座

一个 USB A 型插座对 10" 引线上的 USB B 型插座，一个 RJ-45 插座对插座直通接头 - CAT 5e

一个 USB-C 插座对引线上的 HDMI 插座

两个触点闭合开关 - 瞬时，单刀双掷带 LED - 对焊片

带引线的 HDMI 插座和 USB A 2.0 插座

带引线的 HDMI 插座和 USB A 3.2 插座

电缆直通 AAP

用于电缆结构的单格 AAP 模块

空板 - 单格

空板 - 四格

空板- 双格

技术参数

VTT001 Series, VTR001 Series

Video

Number/signal type

1 set of proprietary analog signals

Connectors

1 female RJ-45 jack or
1 female RJ-45 jack on a 3" (7.6 cm) pigtail

Video input

Number/signal type

VTT001 series

RGBHV, RGBS

VTR001 series

1 set of proprietary analog signals from a VTT001 model

Connectors

VTT001 series

1 female 15-pin HD

VTR001

1 female RJ-45 jack

VTR001 MAAP/AAP

1 female RJ-45 jack on a 3" (7.6 cm) pigtail

Nominal level

0.7 Vp-p for RGB

Minimum/maximum levels

Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain

Impedance

75 ohms

Horizontal frequency

15 kHz to 130 kHz

Vertical frequency

30 Hz to 150 Hz

Video output

Number/signal type

VTT001 series

1 set of proprietary analog signals

VTR001 series

RGBHV, RGBS

Connectors

VTT001

1 female RJ-45 jack

VTT001 MAAP/AAP

1 female RJ-45 on a 3" (7.6 cm) pigtail

VTR001 series

1 female 15-pin HD

Nominal level

0.7 V p-p for RGB

Minimum/maximum levels

0.3 V to 1.45 Vp-p

Impedance

75 ohms

Maximum resolution

1600x1200 or 1080p RGBHV

NOTE	Refer to the user's manual for the maximum distances recommended for specific resolutions. 1080p component video is not supported.

Sync

Input type

VTT001 series

RGBHV, RGBS

Output type

VTR001 series

RGBHV, RGBS

Input level

2.0 V to 5.5 Vp-p with ±0.2 VDC offset max.

Output level

3.0 V to 4.0 Vp-p

Input impedance

Hi-Z

Output impedance

75 ohms

Max. propagation delay

580 ns

Max. rise/fall time

45 ns

Polarity

Negative

General

Recommended cable type

CAT 5/5e/6

Power

Supplied by an external power supply

External power supply

100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated

Power input requirements

12 VDC, 0.1 A for VTT
12 VDC, 0.15 A for VTR

Temperature/humidity

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling

Convection, no vents

Mounting

Rack mount

Yes, with optional mounting hardware

Furniture or wall mount

Yes, with optional mounting hardware

Enclosure type

Metal

Enclosure dimensions

VTT001/VTR001 MAAP

Faceplate

1.4" H x 2.2" W x <0.1" D (3.5 cm H x 5.6 cm W x 0.1 cm D)
(double space high MAAP plate)

VTT001/VTR001 AAP

Faceplate

1.4" H x 3.5" W x 0.1" D (3.5 cm H x 8.9 cm W x 0.3 cm D)
(double space high AAP plate)

VTT001 series

Device

1.4" H x 1.4" W x 1.4" D (3.5 cm H x 3.5 cm W x 3.5 cm D)
(Depth excludes connectors.)

VTR001 series

Device

1.4" H x 1.4" W x 1.75" D (3.5 cm H x 3.5 cm W x 4.4 cm D)
(Depth excludes connectors.)

Product weight

1.0 lbs (0.5 kg)

Shipping weight

3 lbs (2 kg)

Vibration

ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety

CE, c-UL, UL

EMI/EMC

CE, C-tick, FCC Class A, ICES, VCCI

MTBF

30,000 hours

Warranty

3 years parts and labor

NOTE	All nominal levels are at ±10%.

NOTE	Specifications are subject to change without notice.

(8.0-111110-D14)

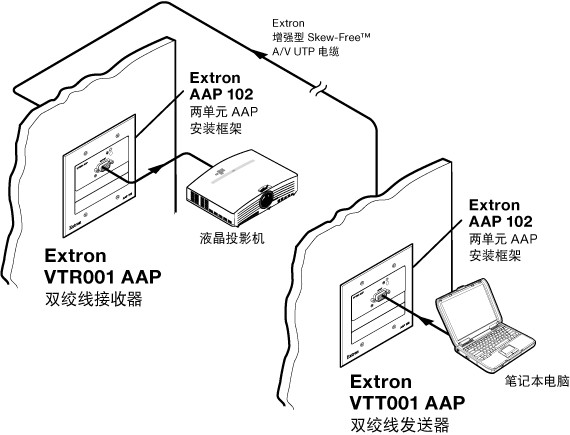

示意图
